20HP Air-Cooled Chiller Reactor/Mixing Tank Cooling Water Circulation
How to cool down printing industry equipment? What are the requirements for special industrial chillers?
Printing equipment is expensive, so the industrial chiller used with it is very critical. A bad choice can easily cause frequent alarms on the equipment, leading to frequent failures and difficulty in use, as well as damage to the printing equipment.
First, let’s take a look at how the heat is generated when the printing equipment is working?
During the entire printing process, friction between parts will generate heat, which is then transferred to the ink and paper, and the ambient temperature of the printing workshop will also rise in this process. These two increases in heat will reduce the overall quality of the ink and printing operation.
The industrial chiller used in printing cools during this process, which can eliminate the heat generated by the friction of the printing rollers and cool the paper after it comes out of the ink drying box, which can preserve and improve the printing work and extend the service life of the printing equipment.
During the operation of printing equipment, the temperature of the roller is the main factor controlling the ink quality, and the dedicated printing chiller is to reduce printing time and improve efficiency.
What is the working principle of the chiller for printing?

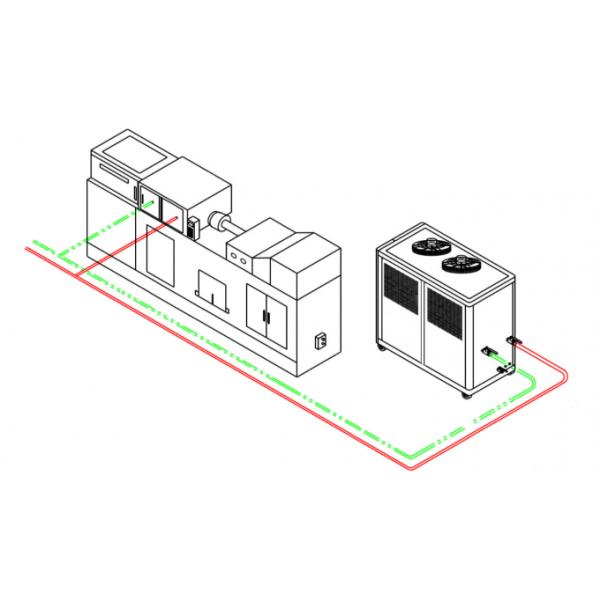

Industrial chillers usually flow coolants such as water and antifreeze. The liquid flows to the cooling pipe of the roller, which can absorb the heat of the roller and other components (paper and ink). Then, the water cycle of the industrial chiller cools - absorbs heat - cools - cools again - absorbs heat again, keeping the roller working in the appropriate temperature range.
Using industrial chillers in the printing process is an efficient, stable and reliable method to reduce high temperatures, save time, machinery and materials, and help improve printing efficiency and printing quality.
Industrial Chiller Specification:
| Model Item | BZY-20A |
| Nominal cooling capacity | Kcal/h | 51420 |
| kw | 60 |
| Power supply | 3PH~380V/50HZ 三相~380V/50HZ |
| Refrigerant | Type | R22/R407C/R134A/R410A/R404A |
| Type of control | Expansion valve |
| Compressor | Type | Hermetic scroll type |
| Power (HP) | 10*2 |
| Condenser | Type | Finned copper tube+low noise outer rotor fan |
| Power(kw) | 0.7*2 |
| Cooling air flow(m3 /h) | 23600 |
| Evaporator | Type | Water tank type |
| Chilled water flow(m3 /h) | 21.6 |
| Water Tank Capacity | 200L |
| Inlet/outlet pipe chiller(inch) | 2" |
| Water pump | Power(kw) | 1.5 |
| Lift(m) | 20 |
| Safety protection | compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection |
| Net weight | KG | 840 |
| Machine size(mm) | mm | 1910*850*1740 |
Features:
-
High efficiency and energy saving, the COP can reach 4.0.
-
Compact size, small occupied area.
-

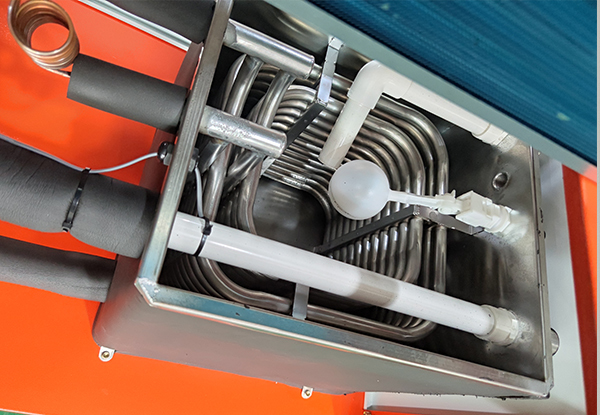

304 stainless steel evaporator, longer service life
-
60kw of cooling capacity, customization available.
Product Highlights:

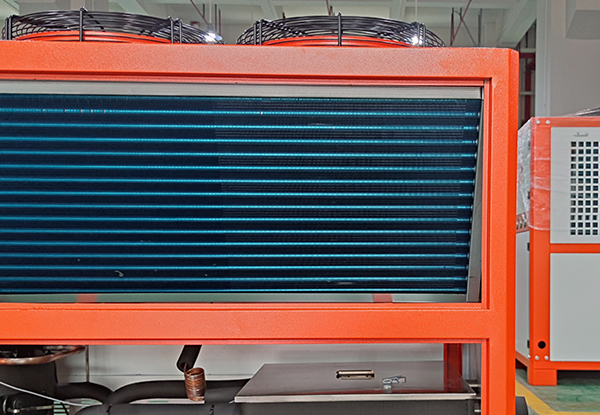

Brand compressor, energy saving 20-30%, stable operation, high efficiency, External corrugated hydrophilic aluminum foil to increase heat dissipation area,
low failure rate, long service life, etc. internal all-copper high-efficiency condenser
304 stainless steel insulated water tank; Anti-icing protection device. LCD display, easy operation, multi-language support, safety tips
External axial flow fan, effectively saving 30% of energy Lightweight, stable throttling, light corrosion resistance
